Layouts for topological representations

import os

import matplotlib as mpl
import matplotlib.pyplot as plt

import nngt


nngt.seed(0)


# set matplotlib backend depending on the library
mpl_backend = mpl.get_backend()

if nngt.get_config("backend") in ("graph-tool", "igraph"):

    if mpl_backend.startswith("Qt4"):
        if mpl_backend != "Qt4Cairo":
            plt.switch_backend("Qt4Cairo")
    elif mpl_backend.startswith("Qt5"):
        if mpl_backend != "Qt5Cairo":
            plt.switch_backend("Qt5Cairo")
    elif mpl_backend.startswith("GTK"):
        if mpl_backend != "GTK3Cairo":
            plt.switch_backend("GTK3Cairo")
    elif mpl_backend != "cairo":
        plt.switch_backend("cairo")


# prepare figure and parameters

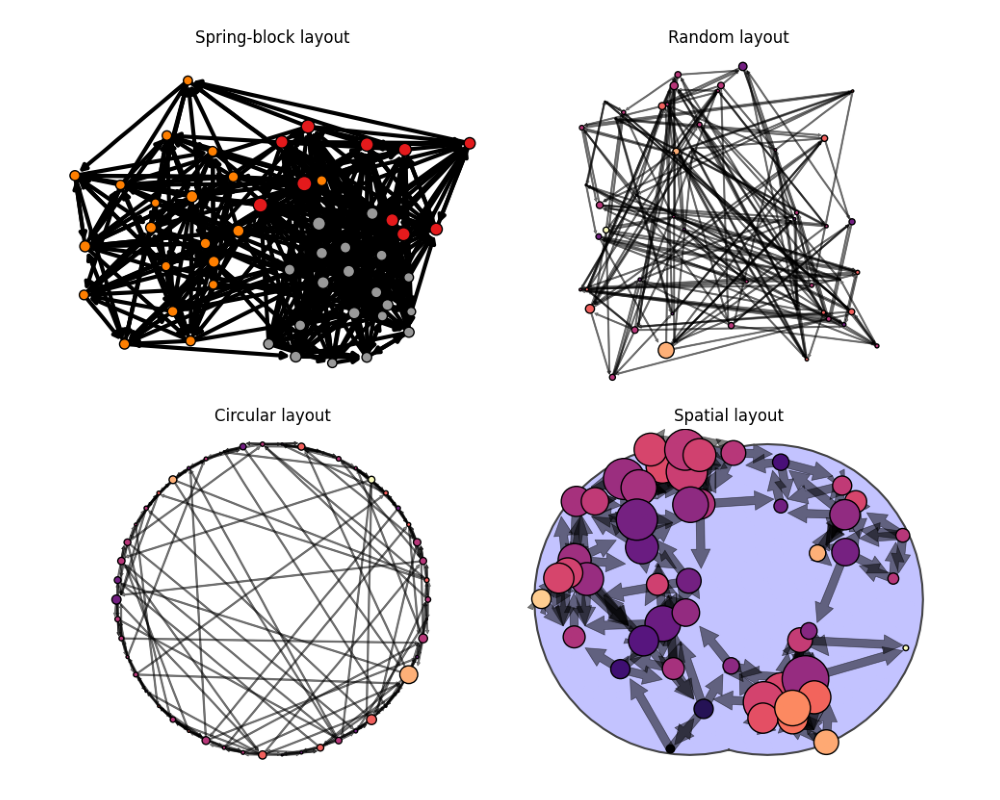

_, axes = plt.subplots(2, 2, figsize=(10, 8))

num_nodes = 50


# spring-block layout for structured graph

room1 = nngt.Group(10)
room2 = nngt.Group(20)
room3 = nngt.Group(20)

names = ["R1", "R2", "R3"]

struct = nngt.Structure.from_groups((room1, room2, room3), names)

g = nngt.Graph(structure=struct)

for room in struct:
    nngt.generation.connect_groups(g, room, room, "erdos_renyi", avg_deg=5)

nngt.generation.connect_groups(g, (room1, room2), struct, "erdos_renyi",
                               avg_deg=3, ignore_invalid=True)

nngt.generation.connect_groups(g, room3, room1, "erdos_renyi", avg_deg=5)

nngt.plot.library_draw(g, tight=False, axis=axes[0, 0], show=False)

axes[0, 0].set_title("Spring-block layout")


# random layout

sw = nngt.generation.watts_strogatz(4, 0.3, nodes=num_nodes)

betw = nngt.analysis.betweenness(sw, "node")

nngt.plot.draw_network(sw, nsize=betw, ncolor="out-degree", axis=axes[0, 1],
                       tight=False, show=False)

axes[0, 1].set_title("Random layout")


# circular layout for small-world networks

nngt.plot.draw_network(sw, nsize=betw, ncolor="out-degree", layout="circular",
                       axis=axes[1, 0], show=False, tight=False)

axes[1, 0].set_title("Circular layout")


# spatial layout

c1 = nngt.geometry.Shape.disk(100)
c2 = nngt.geometry.Shape.disk(100, centroid=(50, 0))

shape = nngt.geometry.Shape.from_polygon(c1.union(c2))

npos  = shape.seed_neurons(num_nodes)

g = nngt.generation.distance_rule(10, shape=shape, nodes=num_nodes, avg_deg=5)

cc = nngt.analysis.local_clustering(g)

nngt.plot.draw_network(g, ncolor=cc, axis=axes[1, 1], tight=False, show=False)

axes[1, 1].set_title("Spatial layout")

plt.tight_layout()

# save figure

fname = os.getcwd() + "/layouts.png"

plt.savefig(fname)
plt.switch_backend(mpl_backend)

img = plt.imread(fname)

_, ax = plt.subplots(figsize=(10, 8))
ax.imshow(img)

ax.axis('off')

plt.tight_layout()
plt.show()

try:
    os.remove(fname)
except:
    pass

Note that the last lines are just a little trick to make the figure be automatically detected by Sphinx-gallery. For normal use cases you can just do a regular plt.show().
