Plot the betweenness distributions of a graph#
import nngt
import nngt.plot as nplt
from nngt.geometry import Shape
nngt.seed(0)
Let’s start by making a random exponential graph
shape = Shape.disk(100)
g = nngt.generation.distance_rule(5, shape=shape, nodes=1000, avg_deg=3)

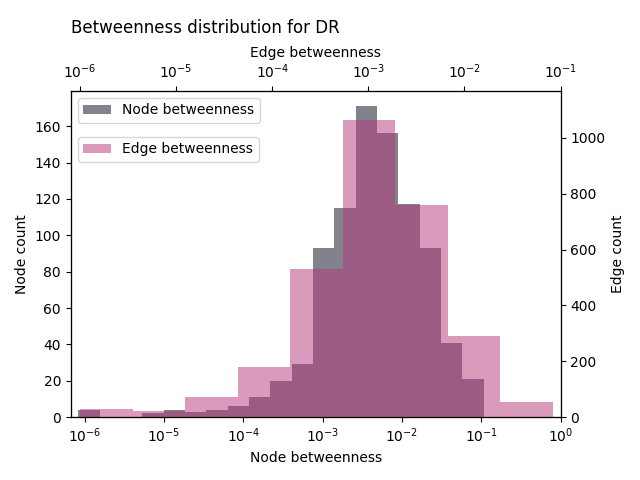

then we can plot the betweenness
nplt.betweenness_distribution(g, logx=True, show=True,
legend_location='left')
we can of course change various parameters and plot only the nodes
nplt.betweenness_distribution(g, logx=False, show=True)

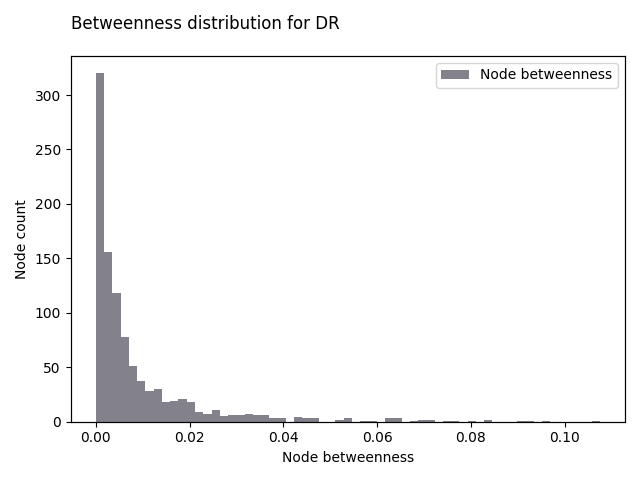

nplt.betweenness_distribution(g, btype="node", num_nbins="auto",
alpha=0.5, show=True)

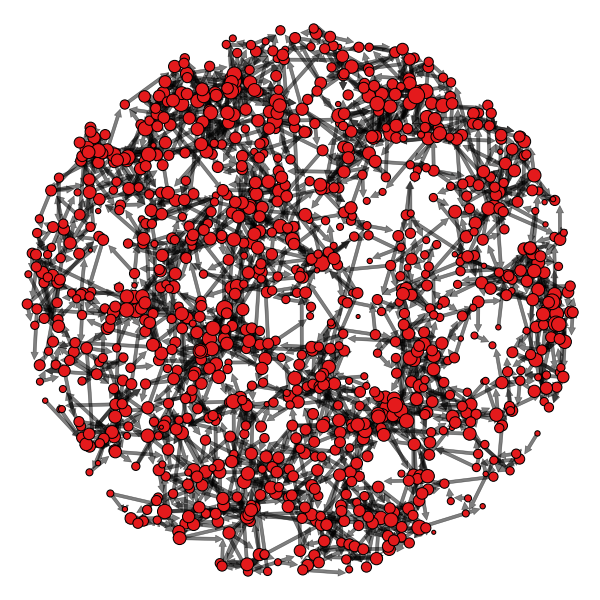

By the way, this is the graph we’re looking at
nplt.draw_network(g, max_nsize=1, show_environment=False, show=True)
Total running time of the script: ( 0 minutes 41.210 seconds)
