Plot the degree distributions of a graph#
import nngt
import nngt.plot as nplt
nngt.seed(0)
First, let’s create a scale-free network
g = nngt.generation.random_scale_free(2.1, 3.2, nodes=1000, avg_deg=100)

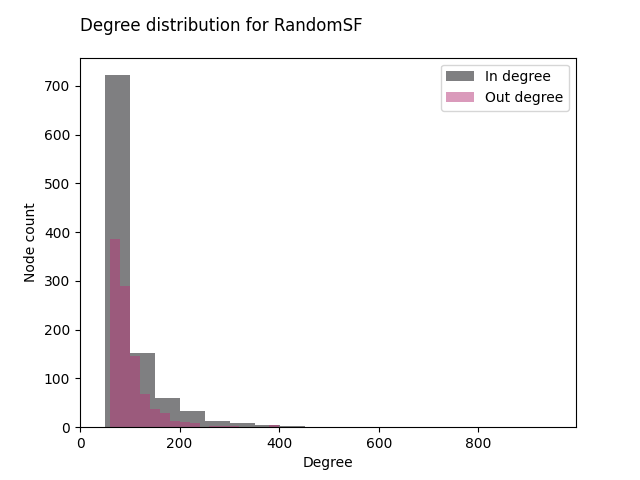

Plot the degree distribution
nplt.degree_distribution(g, deg_type=["in", "out"], show=True)
It’s not bad… but we don’t see much! Let’s move a more relevant scale
nplt.degree_distribution(g, deg_type=["in", "out"], logy=True, show=True)

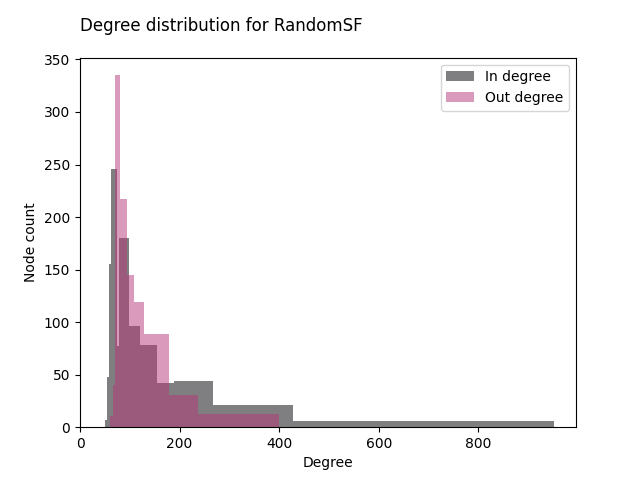

Or we can use Bayesian binning
nplt.degree_distribution(g, deg_type=["in", "out"], num_bins="bayes",
show=True)
Total running time of the script: ( 0 minutes 1.818 seconds)
